FM Mattsson tronic shower panel WMS UV-LED, with thermostatic function, mains operation

Discontinued

Find retailers
Description
Stainless look, mains operation, included transformer and 10 m extension cable
Article number
95036100
EAN
7391887253881

PROPERTIES

  • Shower panel with built-in UV-LED device for effective combating of legionella and other microorganisms
  • Possibilities of wireless connection
  • Bult-in safety function that turns off the water in case of a UV device failure
  • Thermostatic function, with adjustable temperature
  • Programmable start button. Rinsing time from 10–60 seconds, (30 seconds is the factory preset)
  • Jet angle adjustable +/- 5°
  • Flow limiter 9 l/min
  • Can be turned off by solenoid valve (eg for cleaning)
  • IP class sensor, IP67

    Installation:
  • Easy to change battery under the service cover without turning off the water supply
  • Mains operation (included transformer and 10 m extension cable)
  • Connection up G1/2". Ball valve are ordered seperately

    Tronic WMS:
  • With wireless connection to the Tronic WMS system (gateway and subscription required) alternatives via Dongel (1616-1000) the following opportunities are obtained:
    - Programmable rinsing time from 10–60 seconds
    - Built-in temperature measurements (measures output water temperature)
    - Programmable temperature stop, the mixer will turn off directly at set maximum temperature
    - Flush time control, prevents overflow, maximum flush time 5 min.
    - Adjustable hygiene flushing, interval and flush time (to prevent water becoming stagnant)
    - Logging of all flushings with point of time, water consumption and temperature. - Only with WMS
    - Stagnation alarm (an alarm is emitted if the unit is not used within the set time) – Only with WMS
    - Alarm via SMS or email – Only with WMS
Backflow protection unit type EB

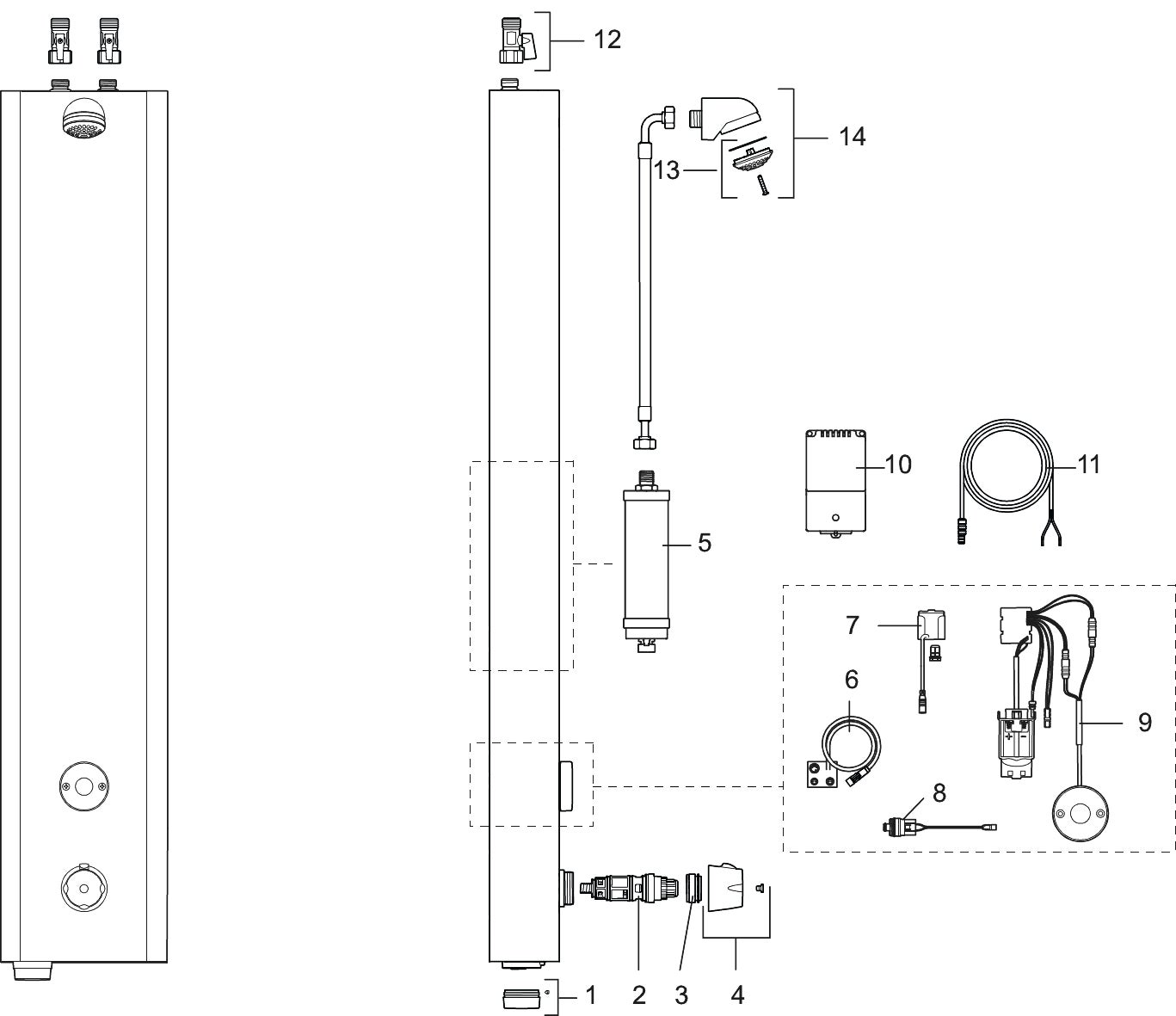

K Tronic duschpanel WMS UV LED.jpg
No. FMM No. RSK Description
1 16222600 8438816 Cover plug for battery, black
2 38607000 8591963 Thermostatic cartridge, complete, incl. service tool
3 409364.AE 8346506 Scalding protection ring, (max 42 °C)
4 S600222 8239545 Temperature handle, complete
5 16150012 8443246 UV-LED device, Purify Flex (12 LED)
6 16217000 8438820 Cabling, UV device
7 S600132 8438826 AC adapter
8 16202000 8221794 Solenoid valve
9 16216500 8438815 Electronic unit
10 16301000 8438821 Transformer 24V
11 S600148 Extension cable, 10 m
12 22801509 5493432 Ball valve G1/2
13 29182000 8221808 Shower strainer
14 S600025 8221869 Shower head, complete

modal.bvb.desc;

Accepted installation instructions

Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).

Leadfree

Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.

Energyclass

Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
