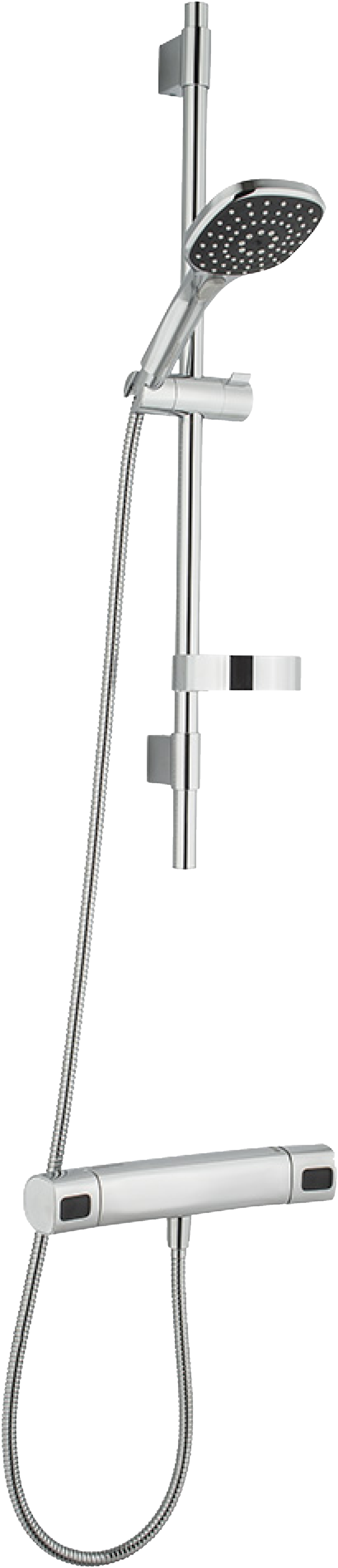

SILJAN shower kit

Our new FM Mattsson Siljan collection combines design with eco-friendly and energy-saving functions without compromising on comfort. The Siljan shower range includes a wide selection of overhead shower and hand shower sets.
The showers can be combined with a Siljan thermostatic shower or bath mixer. Or make things simple by choosing one of our smart all-in-one overhead or hand shower sets.

PROPERTIES

  • Safety mixer art.no. 8380-1500 and shower set art.no. 8370-3900
  • Shower set has anti lime-scale hand shower with Eco Flow 9 l/min, shower bar with slider, soap dish and wall brackets with sealing

Backflow protection unit type EB

  • energy class Energy class
  • lead free
K Siljan Säkerhetsblandare 160cc och 150cc.jpg
No. FMM No. RSK Description
1 35480009 8592029 On/off handle, complete
2 39031500 8592052 End cover, 2 pcs
3 35980009 8585850 Ceramic on/off headwork, reversible
4 38680009 8591701 Filter kit incl. o-rings and service tool
5 59800800 8592005 Inlet connectors, 160 c/c
5 59810800 8592006 Inlet connectors 150 c/c (left-handed thread)
6 38601009 8591609 Thermostatic cartridge, complete, incl. service tool
7 35480109 8592033 Temperature handle, complete
8 39710800 8591967 Nipple M18x1-G1/2 for shower mixer
9 39754000 8591969 Nipple M18x1 with o-ring for bath mixer
10 83990000 8154079 Swivel spout with integrated diverter
11 38086000 8439701 Locking screw
12 29142400 8281526 Housing M24 ext., 13 mm
13 35976209 8592039 Care-handle, black, 2 pcs
14 38523000 8592058 Scalding protection ring
15 38531000 8592059 Stop ring, standard
15 38531040 8592060 Stop ring, reversible
16 38521000 8295345 Stop ring
17 39716000 Nipple M18x1
18 29102650 8281547 Aerator insert, 20–24 l/min at 300 kPa
K Siljan Dusch.png
No. FMM No. RSK Description
1 83890000 8180620 Shower head
2 83753900 8199262 Hand shower
3 94782000 8185652 Slider
4 94712000 8186605 Wall bracket
5 94641000 8185653 Soap dish
6 94781000 8185651 Slider
7 34841750 8181618 Shower hose, chrome
8 83710000 8186586 Wall bracket
9 58902000 8190734 Diverter, complete
10 59240000 8190735 Cartridge
11 27925000 8180419 Extender, 18 mm, 2 pcs
12 58943000 8217833 Upper bar
13 27930000 8221726 Joint
14 58931000 8217832 Lower bar
15 58921000 8217831 Extension bar
16 39391000 8221716 Distance ring for Ø18, Ø20 and Ø22 mm pipe
17 38080700 8295337 Stop screw M5x20
