FM Mattsson tronic compact WMS, with thermostatic function, battery operation (included battery)

Description
Chrome, battery operation, included battery and mounting plate
Article number
95176000

PROPERTIES

  • Tronic Copmpact with possibilities of wireless connection (subscription is required)
  • Thermostatic function, with adjustable temperature
  • Battery operation, can be converted to mains operation

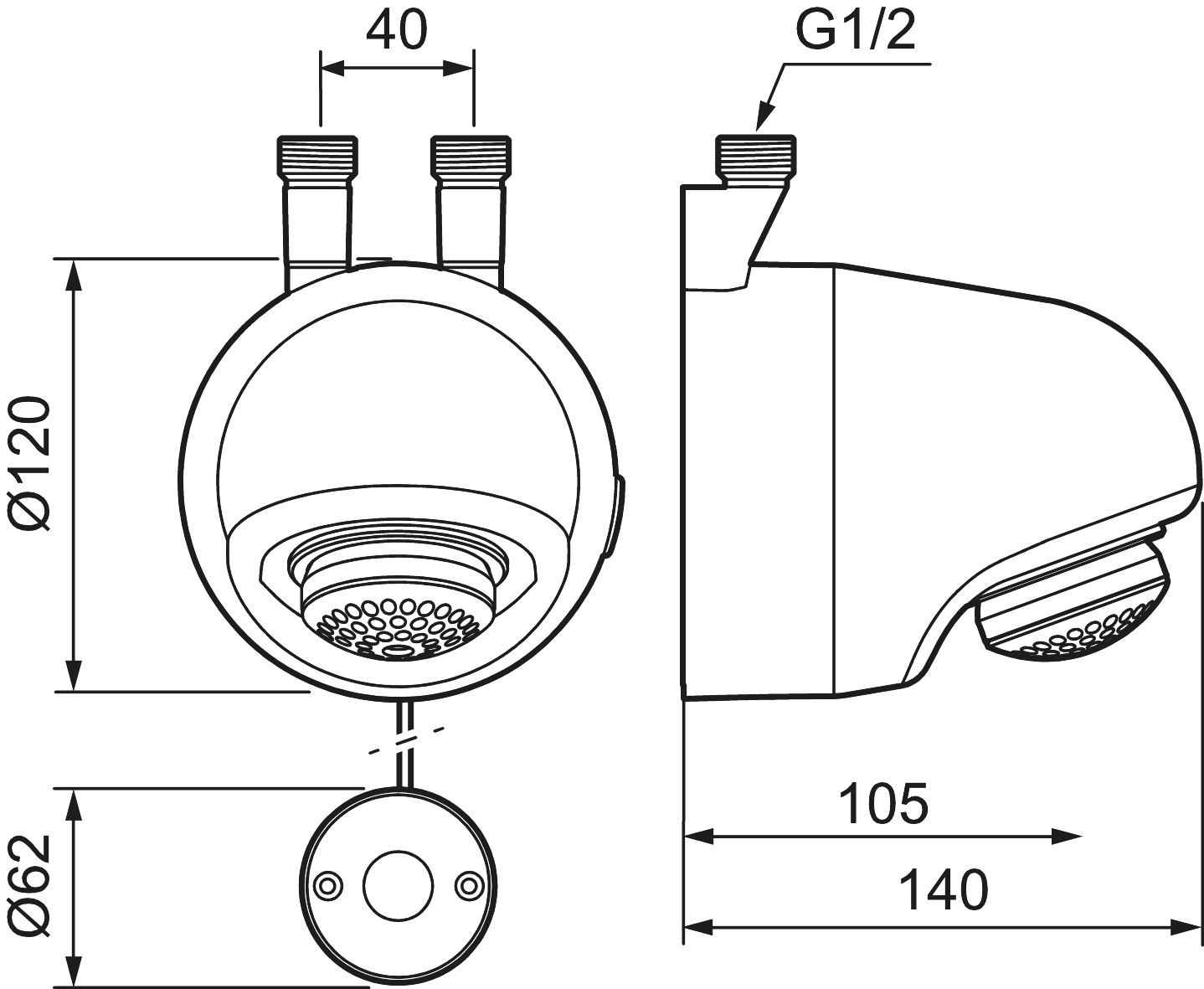

  • Connection up G1/2"
  • Solenoid valve, shut-off valve and electronics integrated in the shower head
  • Programmable start button. Rinsing time from 10–60 seconds, (30 seconds is the factory preset)
  • Flush Timeout - safety shut-off to prevent flooding, maximum of 5 minutes
  • Jet angle adjustable +/- 5°
  • Flow limiter 9 l/min
  • Can be turned off by solenoid valve (eg for cleaning)
  • Low power consumption - Long life
  • Equipped with system for thermal disinfection against legionella
  • IP class sensor, IP67
  • Approved non-return valves, EN-Standard EN1717

    Installation:
  • The power cable between the shower head and the start button should ideally be placed in the joints between wall tiles or in a pipe, but take care not to damage the wall’s moisture barrier
  • Mains operation requires installation of the AC adapter FMM 1623-0000, and power supply FMM 1619-4000 alternatively transformer FMM 1619-3000, plus extension cable FMM 1617-5500

    Tronic WMS:
  • Note! Gateway and subscription or dongle are required for the WMS function
  • The following options are available with wireless connection to our Tronic WMS system:
  • Programmable rinsing time from 10–60 seconds, (30 seconds is the factory preset)
  • Selection of activation type:
    - Saving mode, set time, always flush at the same time, factory preset mode
    - Normal, rinsing time is extended if you press again before it stops
    - Switching mode, set time, reactivation interrupts flushing
  • Adjustable hygiene flushing, interval and rinsing time (in order to prevent stagnant water)
  • Logging of all flushings with point of time, water consumption and temperature for individual mixer or group of mixers (minimum, maximum and average values)
  • Battery monitoring
  • Built-in temperature measurements of mixed water temperature
  • Programmable temperature stop, the mixer will turn off directly at set maximum temperature
  • Initiate hot water rinsing

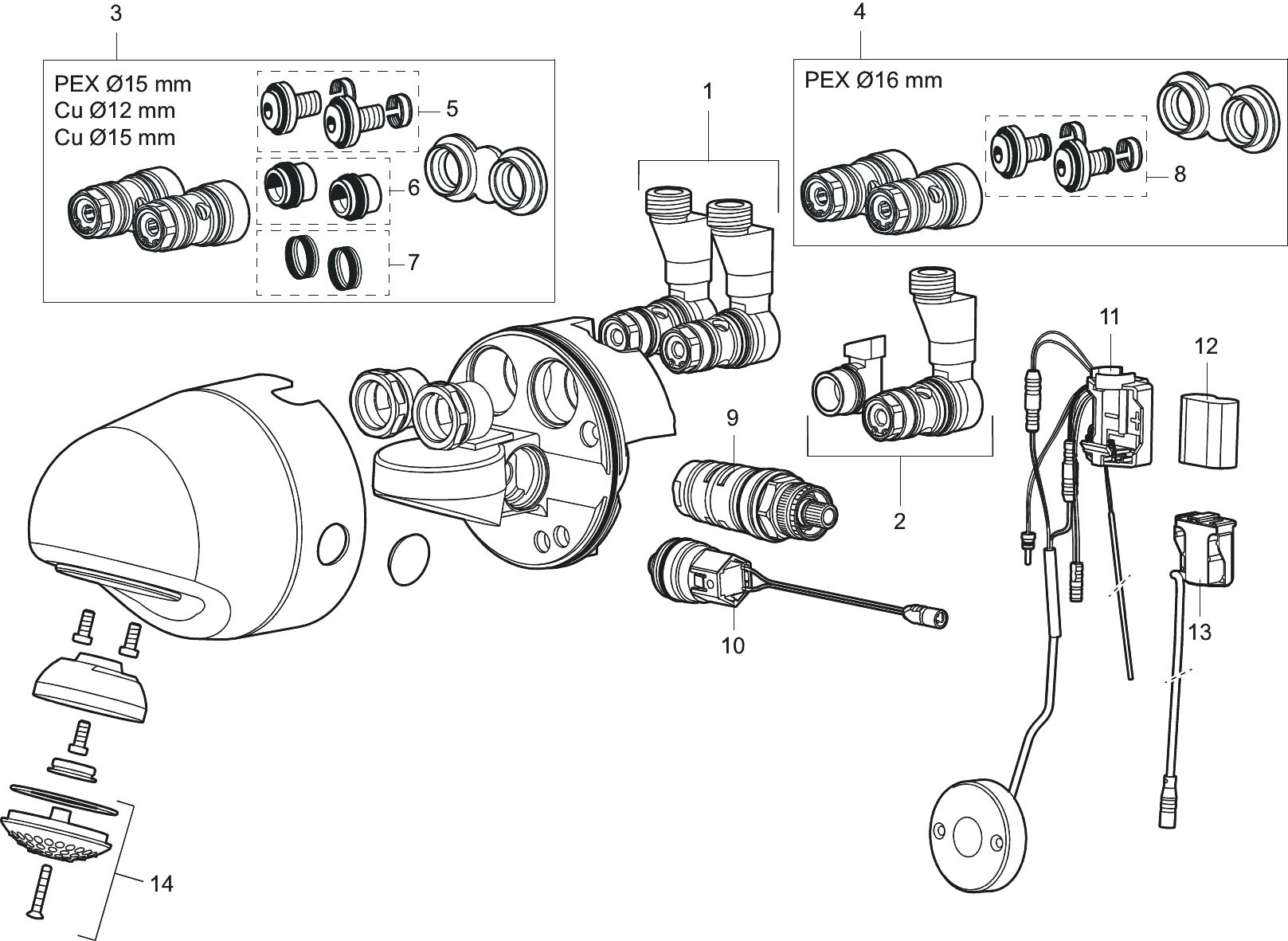

K Tronic compact WMS.jpg
No. FMM No. RSK Description
1 28145000 8221805 Connectors, complete
2 28145100 8221807 Connector, complete
3 28141000 8221803 Mounting plate with connection for CU 12-15 and PEX 15
4 28141600 8221804 Mounting plate with connection for PEX 16, ALU-PEX 16
5 19451550 8221801 Coupling kit, PEX 15
6 19451250 8221799 Gasket kit, CU 12
7 19451500 8221800 Gasket kit, CU 15
8 19451600 8221802 Coupling kit, PEX 16
9 38147000 8221811 Thermostatic cartridge
10 16202000 8221794 Solenoid valve
11 16216600 8221793 Electronic unit
12 16361000 8553510 Battery
13 16230000 8553506 AC adapter
14 29182000 8221808 Shower strainer
