- Article number
- S600129
9000E tronic WMS basin mixer, for premixed water, mains operation
- Description
- Chrome, mains operation, without transformer
- Article number
- 16406100
- GTIN
- 7391887253584
PROPERTIES
- WMS-mixers with possibilities of wireless connection
- For premixed water
- Soft closing solenoid valve
- Safe against vandalism, complete in metal
- Eco (energy and water saving constant flow aerator, 5 l/min at 200–600 kPa)
- Flush Timeout - safety shut-off to prevent flooding
- Rinse time
- Time limited shut-off (eg for cleaning)
- Low power consumption - Long life
- Equipped with function for thermal disinfection against legionella
- Mains operation (excl. transformer)
- IP class sensor, IP67
- Approved non-return valves, EN-Standard EN1717
- Environmental friendly material, Lead free, Nickel Free
Installation: - Automatic sensor calibration
- Mains operation requires power supply art.no. S600129, alternatively transformer art.no. S600128
- Soft PEX® hose with integrated non return valves and filters (stainless steel braided)
- Hole diameter Ø33,5-37 mm
Tronic WMS: - With wireless connection to the Tronic WMS system (gateway and subscription required) alternatives via Dongel (1616-1000) the following opportunities are obtained:
- Programmable rinsing time from 10–60 seconds
- Built-in temperature measurements (measures output water temperature)
- Programmable temperature stop, the mixer will turn off directly at set maximum temperature
- Flush time control, prevents overflow, maximum flush time 5 min.
- Adjustable hygiene flushing, interval and flush time (to prevent water becoming stagnant)
- Logging of all flushings with point of time, water consumption and temperature. - Only with WMS
- Alarm via SMS or email – Only with WMS
-
Power supply 12V
-
-
Extension cable
- Article number
- S600126
-
Extension cable 5m
- Article number
- S600127
-
Transformer 12V
- Article number
- S600128
-
1–5 branching contact
- Article number
- S600133
-
-
-
Dongle, tronic WMS
- Article number
- 16161000

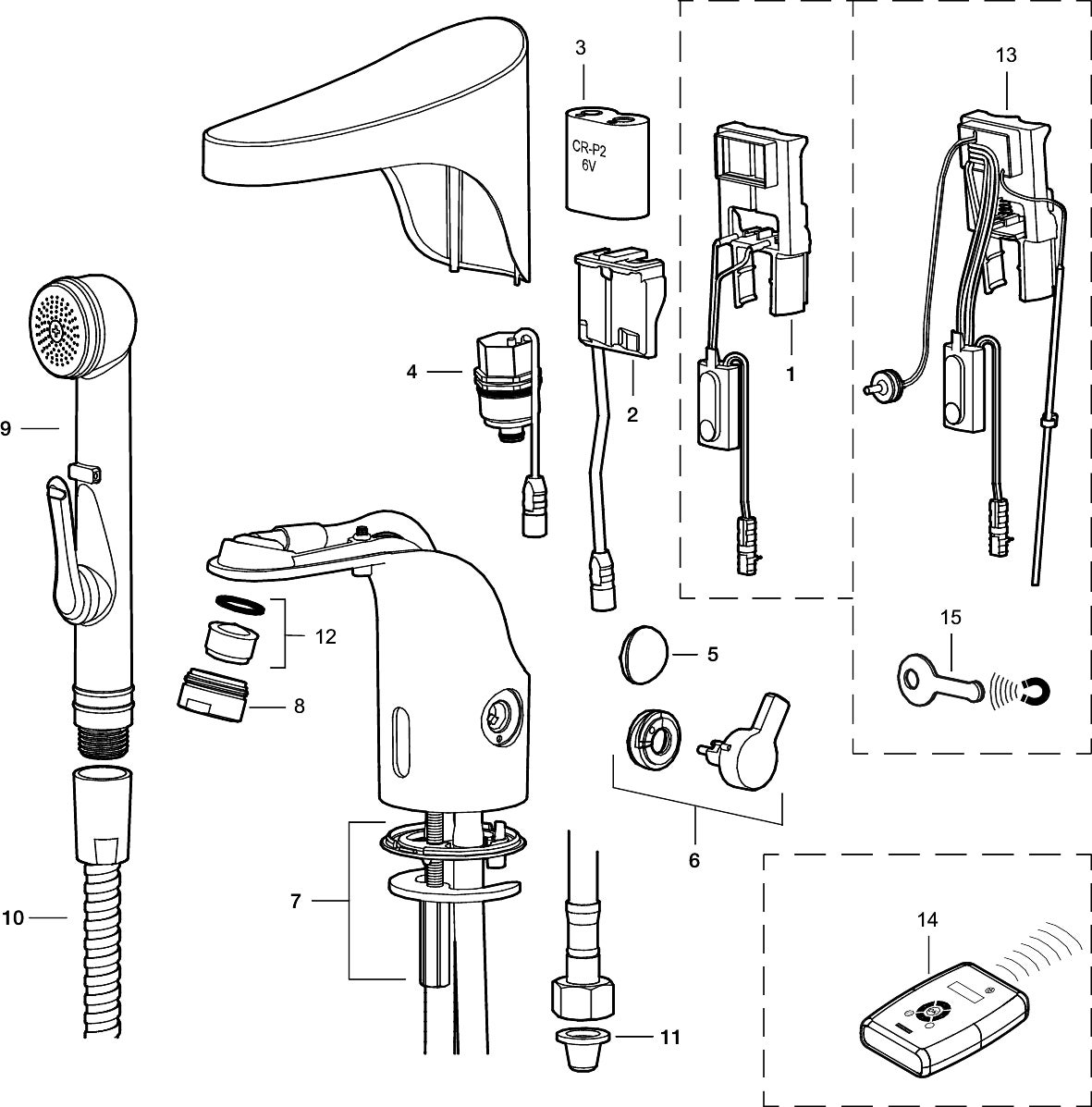

No. | FMM No. | RSK | Description |
---|---|---|---|
1 | 16214000 | 8553501 | Electronic unit, Stand. |
1 | 16216000 | 8553503 | Electronic unit, Centrally controlled |
2 | S600131 | 8483190 | AC adapter |
3 | S600135 | 8483191 | Battery |
4 | 16201000 | 8553500 | Solenoid valve |
5 | 16222000 | 8553505 | Cover plug |
6 | 16221000 | 8553504 | Lever |
7 | 39141600 | 8553512 | Fastening kit |
8 | 29142400 | 8281526 | Housing M24 ext., 13 mm |
9 | 34582000 | 8183841 | Self-closing hand shower |
10 | S600207 | 8236647 | Shower hose, L=1,5 m, chrome |
11 | 38800009 | 8295340 | Filter kit Soft PEX 3/8", 2 pcs |
12 | 29100500 | 8281532 | Aerator insert, 5 l/min at 200–600 kPa |
12 | S600072 | 8281671 | Aerator insert, 3 l/min at 200–600 kPa |
13 | 16216100 | 8438811 | Electronic unit, for WMS mixer |
14 | 16250000 | 8553508 | Remote control |
15 | S600150 | Service magnet |
modal.bvb.desc;
Accepted installation instructions
Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).
Leadfree
Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.
Energyclass
Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
