FM Mattsson 9000E Tronic WMS for premixed water, without temperature knob, battery operation (included battery)

PROPERTIES

  • WMS-mixers with possibilities of wireless connection (subscription is required)
  • Adjustable hygiene flushing, intervals and rinsing time (to avoid stagnant water)
  • Logging of all flushings with point of time, water consumption and temperature for individual mixer or group of mixers (minimum, maximum and average values)
  • Battery monitoring
  • Built-in temperature measurements of mixed water temperature
  • Programmable temperature stop, the mixer will turn off directly at set maximum temperature
  • For premixed water
  • Soft closing solenoid valve
  • Safe against vandalism, complete in metal
  • Eco (energy and water saving constant flow aerator, 5 l/min at 200–600 kPa)
  • Flush Timeout - safety shut-off to prevent flooding
  • Rinse time
  • Time limited shut-off (eg for cleaning)
  • Low power consumption - Long life
  • Equipped with system for thermal disinfection against legionella
  • Battery operation, can be converted to mains operation
  • IP class sensor, IP67
  • Approved non-return valves, EN-Standard EN1717
  • Environmental friendly material, Lead free, Nickel Free

    Installation:
  • Note! Gateway and a subscription is required for WMS
  • Automatic sensor calibration
  • Easy to change battery, without turning off the water supply
  • Mains operation requires installation of the AC adapter FMM 1623-0000, and power supply FMM 1619-4000 alternatively transformer FMM 1619-3000
  • Soft PEX® hose with integrated non return valves and filters (stainless steel braided)

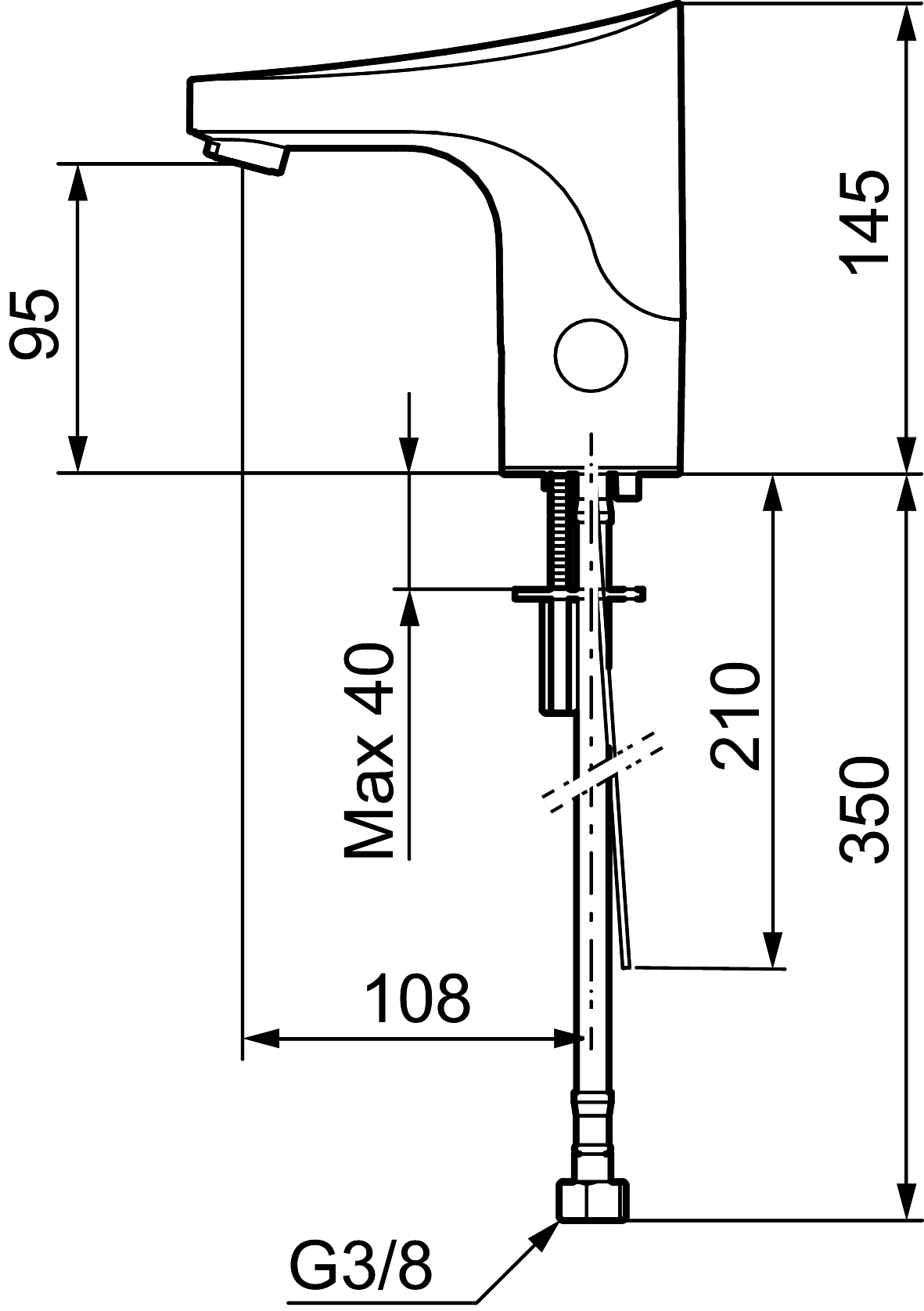

  • Hole diameter Ø33,5-37 mm

    Settings:
  • With Gateway and WMS:
    - Hygiene flushing with adjustable time and intervals
    - Initiate hot water rinsing
    - Programming of rinsing times, temperature alarm och temperature stops
    - Alert signal if exceeding the time limit for stagnant water (the latest flushing)

Backflow protection unit type EB

  • lead free
K 9000E Tronic WMS.jpg
No. FMM No. RSK Description
1 16214000 8553501 Electronic unit, Stand.
1 16216000 8553503 Electronic unit, Centrally controlled
2 16230000 8553506 AC adapter
3 16361000 8553510 Battery
4 16201000 8553500 Solenoid valve
5 16222000 8553505 Cover plug
6 16221000 8553504 Lever
7 39141600 8553512 Fastening kit
8 29142400 8281526 Housing M24 ext., 13 mm
9 34582000 8183841 Self-closing hand shower
10 34881500 8181594 Shower hose, chrome, L=1,5 m
11 38800009 8295340 Filter kit Soft PEX 3/8", 2 pcs
12 29100500 8281532 Aerator insert, 5 l/min at 200–600 kPa
13 16216100 8438811 Electronic unit, for WMS mixer
14 16250000 8553508 Remote control
15 60775000 Service magnet
