9000E tronic basin mixer, battery operation (included battery)

FM Mattsson 9000E Tronic is a new generation of sensor operated mixers in Sweden. All technical parts are integrated in the mixer body for easy maintenance. The temperature is easily set by means of a lever at the side of the mixer. The lever can be fixed in order to
secure the mixer against scalding or alternatively remove the lever if you need only a fixed temperature. There is also a programmable function for hygienic flush that prevents the water to be stagnant too long and thereby prevents bacteria to grow.

PROPERTIES

  • With temperature knob, battery operation (included battery)
  • Self-closing hand shower, wall bracket and hose
  • Soft closing solenoid valve
  • Safe against vandalism, complete in metal
  • Eco (energy and water saving constant flow aerator, 5 l/min at 200–600 kPa)
  • Flush Timeout - safety shut-off to prevent flooding
  • 30 sec. rinse time via sensor
  • Can be turned off for 60 sec. (eg for cleaning)
  • Low power consumption - Long life
  • Equipped with system for thermal disinfection against legionella
  • IP class sensor, IP67
  • Approved non-return valves, EN-Standard EN1717
  • Environmental friendly material, Lead free, Nickel Free

    Installation:
  • Automatic sensor calibration
  • After adjusting to the desired temperature, knob can be replaced with a lid
  • All models can be adapted for either battery or mains operation 12V AC/DC
  • Mains operation requires installation of the AC adapter FMM S600131, and power supply FMM S600129 alternatively transformer FMM S600128
  • Soft PEX® hoses with integrated non return valves and filters (stainless steel braided)
  • Hole diameter Ø33,5-37 mm

    Settings:
  • Adjustable max temperature
  • Programmable function for hygiene flushing
  • Adjustable flush time

Backflow protection unit type EB

  • Accepted
  • lead free

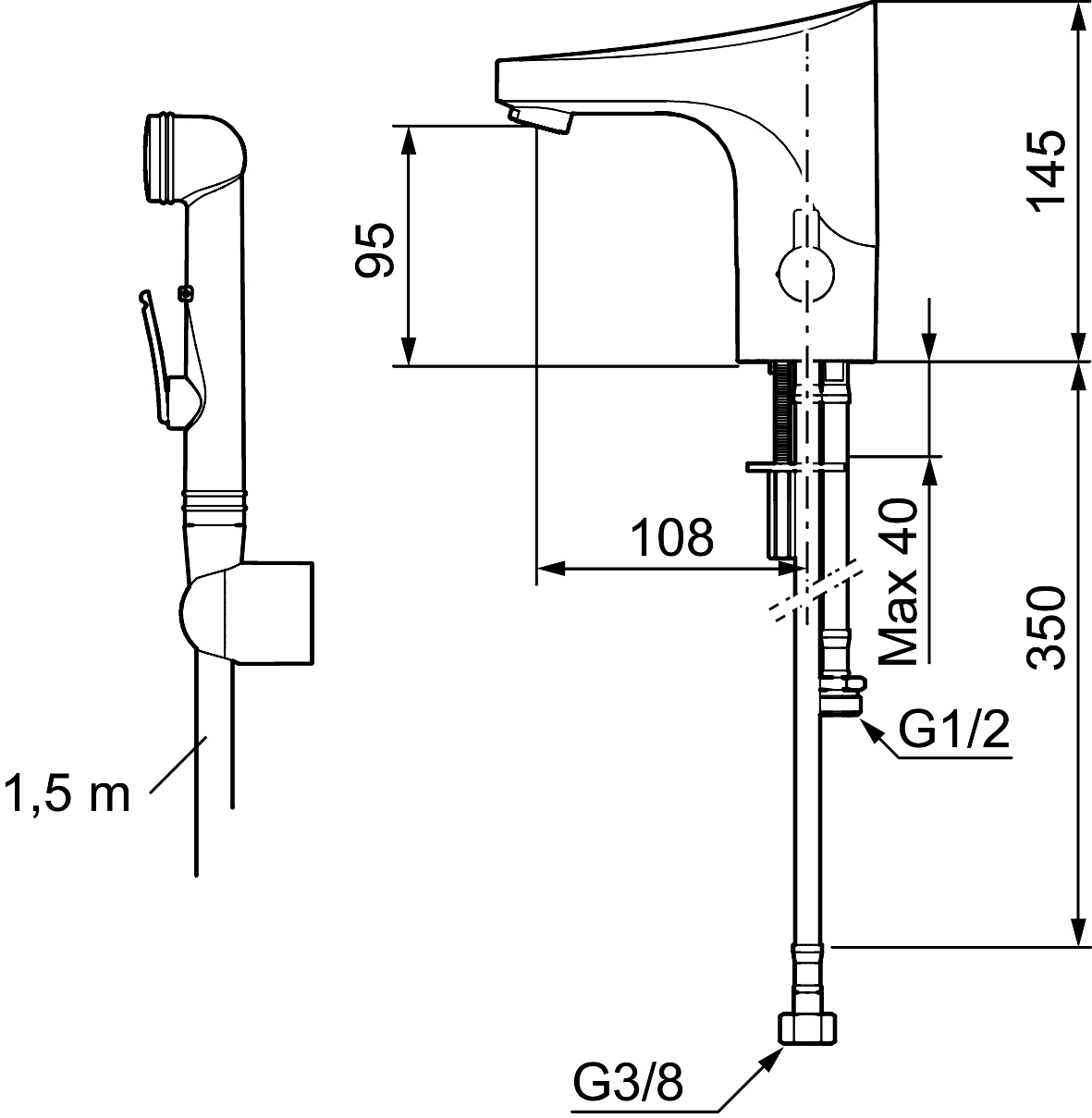

K 9000E Tronic.jpg
No. FMM No. RSK Description
1 16214000 8553501 Electronic unit, Stand.
1 16216000 8553503 Electronic unit, Centrally controlled
2 S600131 8483190 AC adapter
3 S600135 8483191 Battery
4 16201000 8553500 Solenoid valve
5 16222000 8553505 Cover plug
6 16221000 8553504 Lever
7 39141600 8553512 Fastening kit
8 29142400 8281526 Housing M24 ext., 13 mm
9 34582000 8183841 Self-closing hand shower
10 34881500 8181594 Shower hose, chrome, L=1,5 m
11 38800009 8295340 Filter kit Soft PEX 3/8", 2 pcs
12 29100500 8281532 Aerator insert, 5 l/min at 200–600 kPa

modal.bvb.desc;

Accepted installation instructions

Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).

Leadfree

Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.

Energyclass

Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
