PROPERTIES

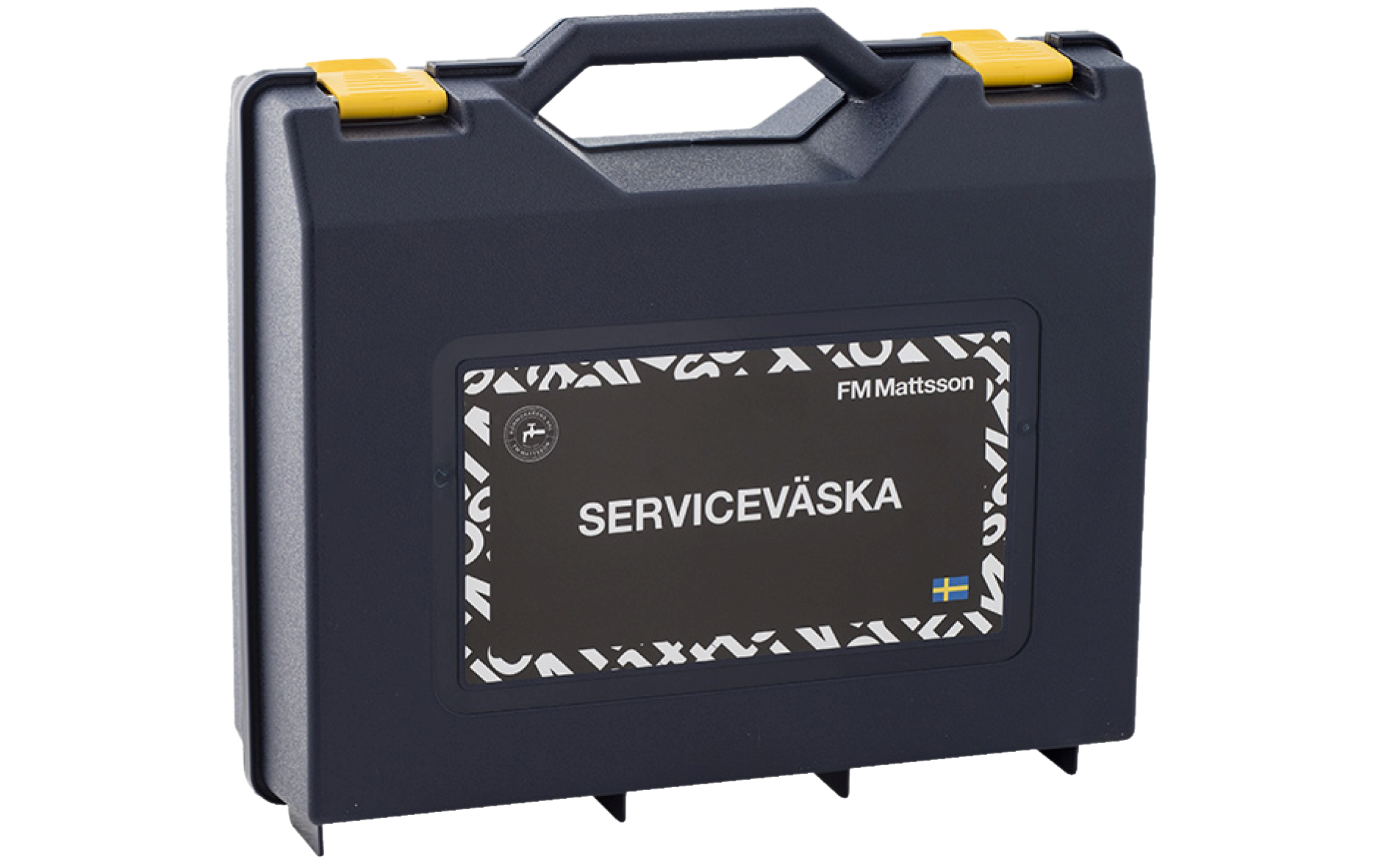

- The contents of the box can be found under the sparepartlist
| No. | FMM No. | RSK | Description |
|---|---|---|---|
| 2 | 59410000 | 8591863 | Cover lid with colour marking |
| 3 | 59320000 | 8591766 | Cover lid with colour marking |
| 4 | 58511000 | 8592021 | Cover lid with colour marking |
| 5 | 58510000 | 8591944 | Cover lid with colour marking |
| 6 | 59120000 | 8591769 | Ceramic cartridge, cold start (green ring) |
| 7 | 59110000 | 8591770 | Ceramic cartridge, not cold start (red ring) |
| 8 | 59251000 | 8591834 | On/off valve for dishwasher, complete |
| 9 | 59290000 | 8591939 | On/off valve for dishwasher, complete |
| 10 | 59303000 | 8591821 | Soft closing headwork, complete, with lever 110 mm, chrome |
| 11 | 37204029 | 8593089 | Sealing rings, 2 pcs |
| 12 | 38601000 | 8591847 | Thermostatic cartridge, complete, incl. service tool |
| 13 | 35900800 | 8585849 | Ceramic on/off headwork |
| 14 | 59800800 | 8592005 | Inlet connectors, 160 c/c |
| 15 | 59800000 | 8591543 | Inlet connectors, 160 c/c |
| 16 | 39412000 | 8591533 | Diverter, complete, without locking ring, 9000 |
| 17 | 59752200 | 8242199 | Aerator M21,5 ext., 7–9 l/min at 300 kPa |
| 18 | 29102290 | 8242220 | Aerator insert, 7–9 l/min at 300kPa |
| 19 | 29102419 | 8909483 | Aerator insert, 11-15 l/min at 300kPa |
| 20 | 29142400 | 8281526 | Housing M24 ext., 13 mm |
| 21 | 29102650 | 8281547 | Aerator insert, 20–24 l/min at 300 kPa |
| 22 | 29142200 | 8281524 | Housing M22 int. |
| 23 | 36001500 | 8913411 | Valve cone |
| 24 | 36001000 | 8591588 | Valve cone |
| 25 | 35980009 | 8585850 | Ceramic on/off headwork, reversible |
| 26 | 38531000 | 8592059 | Stop ring, standard |
| 27 | 38531040 | 8592060 | Stop ring, reversible |
| 28 | 37990109 | 8612656 | Silicone grease, 10 g |
| 29 | 60990800 | Dismantling tool for spout nipple | |
| 30 | 60770000 | 8591918 | Service tool |
| 31 | 60780250 | 8591899 | Hexagon spanner 2,5 |
| 32 | 60863949 | 8591896 | Key, 39/43 mm |
| 33 | 60841000 | 8591891 | Key for aerator M21,5 x 1 |
| 34 | 60830909 | 8591894 | Socket wrench |
| 35 | 37800000 | 8594314 | Box with o-rings |
DOCUMENTS
modal.bvb.desc;
Accepted installation instructions
Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).
Leadfree
Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.
Energyclass
Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
