SILJAN flexi kitchen mixer
SILJAN flexi mixers boast FM Mattsson’s well-known functions such as cold start, soft closing, flow control, a temperature limiter and an energy- and water-saving aerator. In addition to these benefits, SILJAN flexi mixers also have a detachable nozzle and a choice of jet settings.
- Description
- Chrome
- Article number
- 83100010
- GTIN
- 7391887259166
- Flow 3 bar
- 10.3 l/m
PROPERTIES
- Cold Start
- Ceramic cartridge with soft closing function
- Adjustable flow control and temperature limiter
- Hose, limitation part for 60°, 85°, 110° or 360° included
- Nozzle with concentrated jet and handshower
- Soft PEX® hoses with 3/8" connecting nut (stainless steel braided)
- Approved non-return valves, EN-Standard EN1717
- Hole diameter Ø34-37 mm
Backflow protection unit type
Enter your e-mail address, then the parts list will be sent to your inbox.

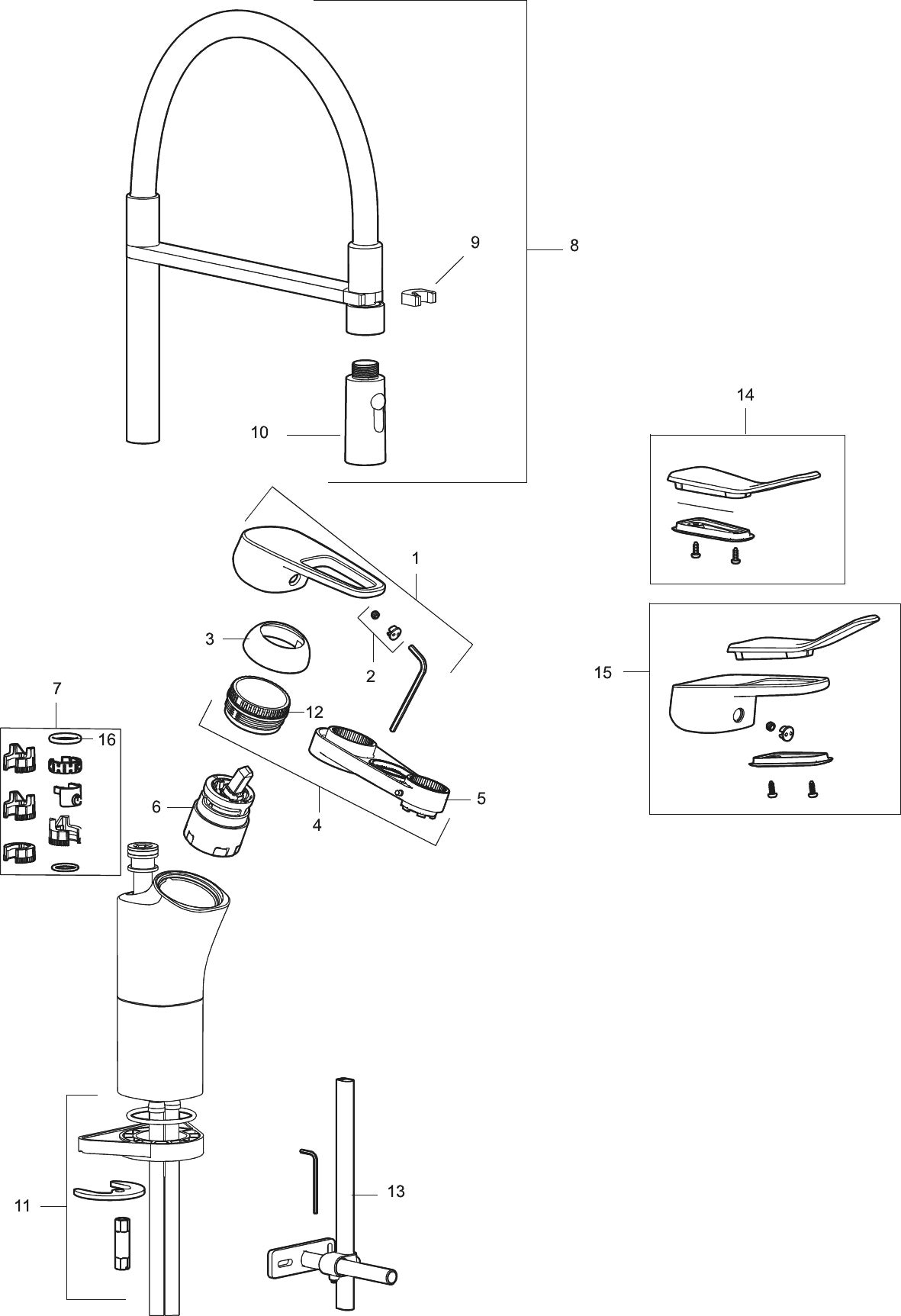

| No. | FMM No. | RSK | Description |
|---|---|---|---|
| 44450009 | 8295353 | Accessories (limitation segment, stop screw, allen wrench 3 mm) | |
| 1 | 58501000 | 8592023 | Complete lever, chrome |
| 2 | 58511000 | 8592021 | Cover lid with colour marking |
| 3 | 58521000 | 8592020 | Cover sleeve, chrome |
| 4 | 58530140 | 8241726 | Fastening nipple with service tool |
| 5 | 60770000 | 8591918 | Service tool |
| 6 | 59120009 | 8591949 | Ceramic cartridge with service tool, cold start (green ring) |
| 7 | 58641000 | 8594560 | Lock kit for swivel spout |
| 8 | S600059 | 8394011 | Spout, complete, chrome |
| 9 | S600061 | 8393993 | Spout mount |
| 10 | S600060 | 8394012 | Nozzle |
| 11 | 39142800 | 8186893 | Fastening kit, for kitchen mixer with on/off valve |
| 12 | 29390000 | 8295356 | Fastening nipple |

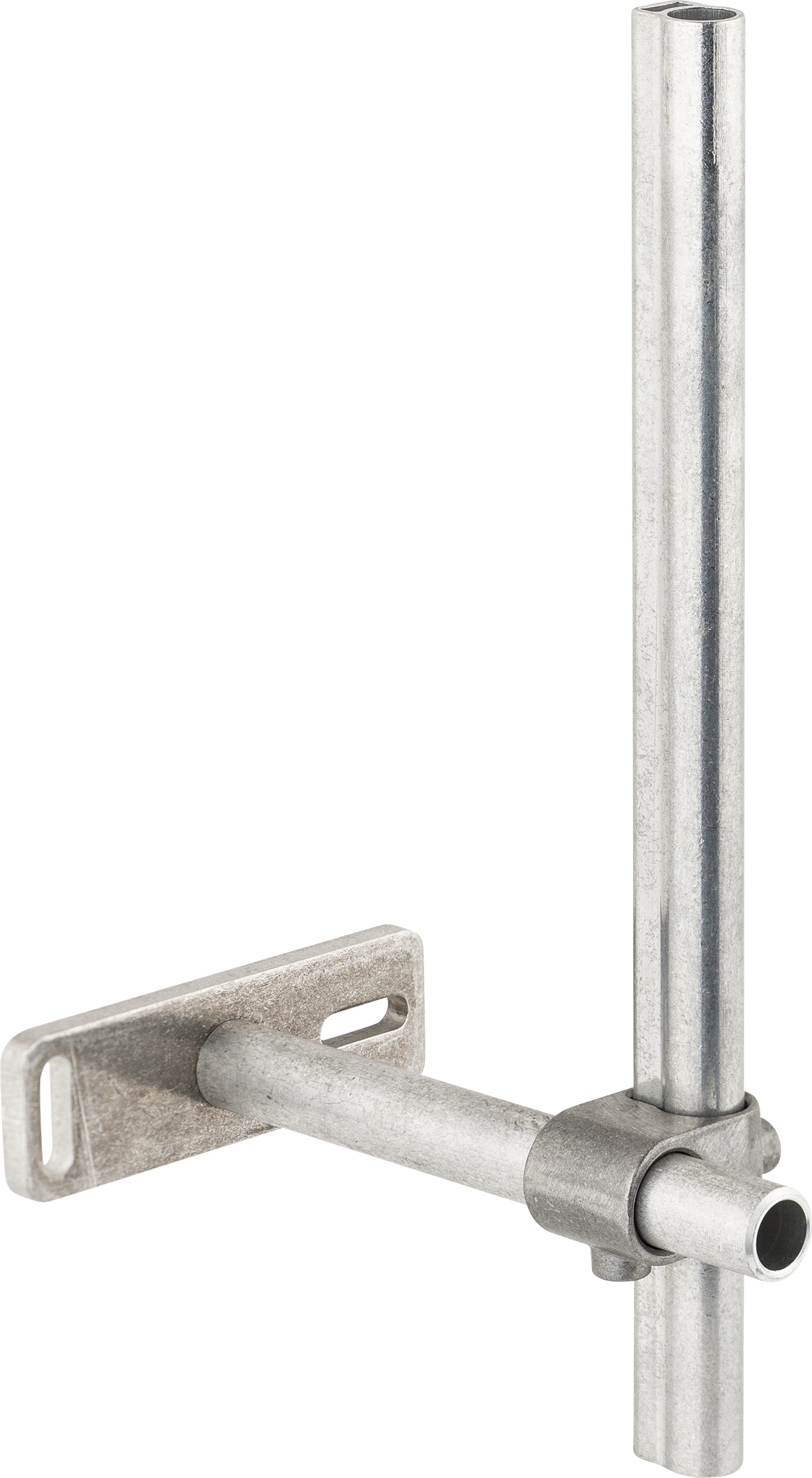

| 13 | 39147000 | 8592050 | Stabilizer kit |
| 14 | 35974009 | 8592038 | Care-kit |
| 15 | 58504000 | 8592049 | Care-lever, complete |
| 16 | 37801550 | 8295350 | O-ring 15,54 x 2,62, 2 pcs |
DOCUMENTS
modal.bvb.desc;
Accepted installation instructions
Safe Water Installation (Säker Vatteninstallation) is a set of industry* regulations to safeguard the quality of sanitary installations, prevent injury and damage and ensure compliance with the building regulations of the Swedish National Board of Housing, Building and Planning (Boverket).
Leadfree
Lead Free means that we have eliminated the lead that is normally found in brass alloys. This will reduce environmental impact of the products. Products classified as Lead Free contain less than 0.1 % lead.
Energyclass
Energy labelling is an objective rating system that shows exactly how much energy a mixer uses. The system was developed by a number of players including sanitary fittings manufacturers, building companies, property owners and authorities such as the Swedish Energy Agency. It is based on standardised laboratory tests and certification rules. Its aim is simple: to offer impartial help for buyers, installation firms, air conditioning consultants and consumers. The mixer’s energy performance is assessed by measuring and registering water pressure, mixed water temperature and flushing time for twelve different activities. The values registered for each of these activities are added together to obtain a total energy consumption value, which is displayed on the label. This total value determines the mixer’s energy rating.
